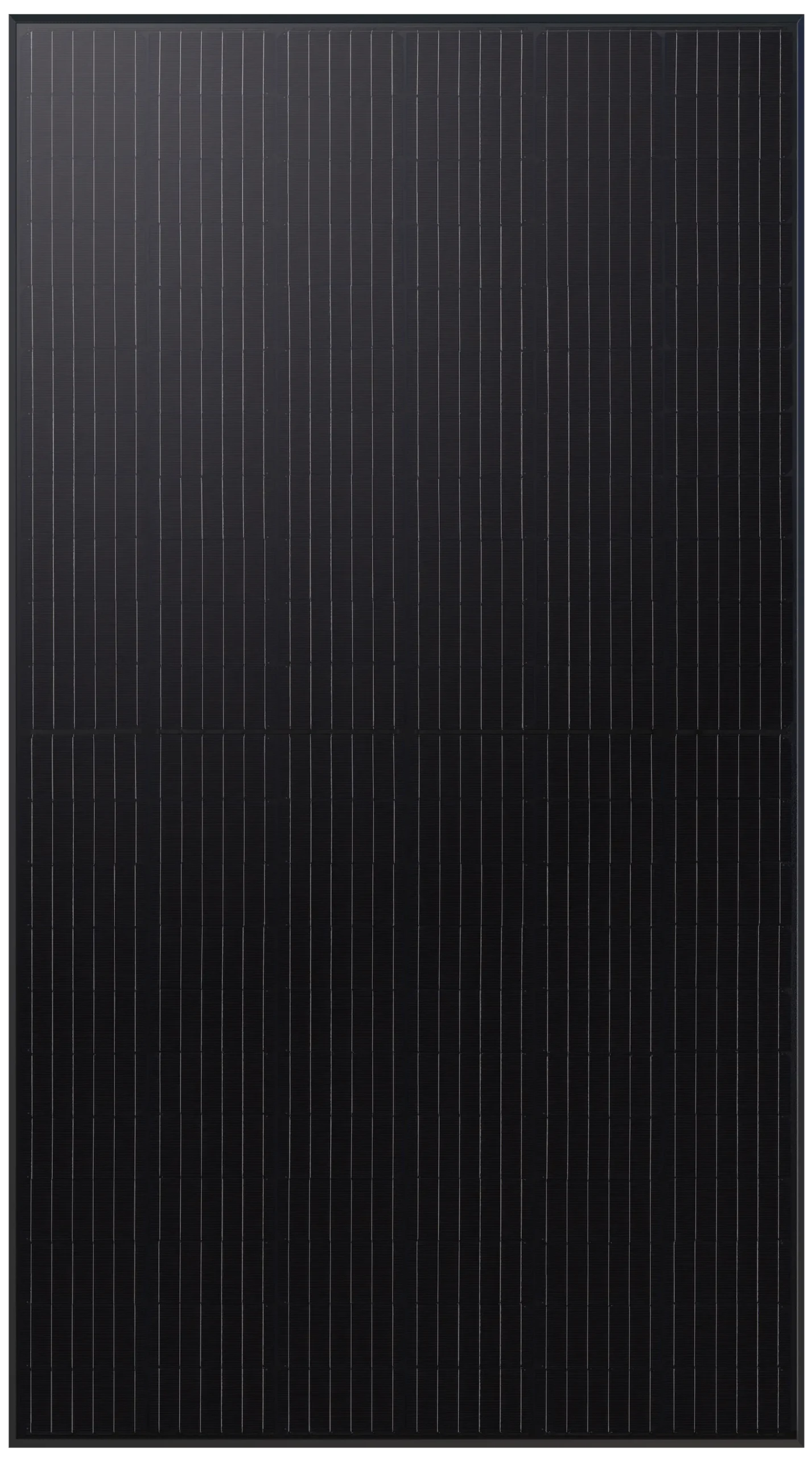

Q.PEAK DUO BLK ML-G10+
Enduring High Performance
With a higher efficiency rate than previous series, the Q.PEAK DUO BLK ML-G10+ is the first 400W module for the residential market and takes high performance to a new level. The G10+ module utilizes Q CELLS’ zero gap Q.ANTUM DUO Z technology to boost module efficiency up to 21.1%. The module is also backed by a 25-year product and performance warranty that guarantees at least 86% of nominal power up to 25 years.
All benefits of Q.PEAK DUO BLK ML-G10+
Breaking the 20 % efficiency barrier
Q.ANTUM DUO Z Technology with zero gap cell layout boosts module efficiency up to 21.1 %.
Innovative all-weather technology
Optimal yields, whatever the weather with excellent low-light and temperature behavior.
Extreme weather rating
High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa).
The most thorough testing programme in the industry
Q CELLS is the first solar module manufacturer to pass the most comprehensive quality programme in the industry: The new “Quality Controlled PV” of the independent certification institute T.V Rheinland.
Enduring high performance
Long-term yield security with Anti LID Technology, Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q™.
A reliable investment
Inclusive 25-year product warranty and 25-year linear performance warranty.
Download the Product Details
Data Sheet
Installation Manual
To explore and download more resources on this product.
Application
Residential Exclusive
Rooftop arrays on residential buildingsPerformance
Cell Technology
132 Half-cell MONO PERC
Nominal Power
395~415Wp
Wind/Snow Load
4000 / 5400 Pa
Efficiency
Module Efficiency
Up to 21.1%
Temperature Coefficient
-0.34%/K
Temperature Tolerance
-40°F up to 185°F
Design
74 × 41.1 × 1.26 in
Weight48.5 lbs
FrameBlack anodized aluminum
ColorAll-black aesthetics
Warranty
Product Warranty
25 years Q.PEAK DUO BLK ML-G10+
Performance Warranty
25 years
At least 98 % of nominal power during first year. Thereafter max. 0.5 % degradation per year. At least 86 % of nominal power up to 25 years.
30-year performance warranty option is available when financed with EnFin
